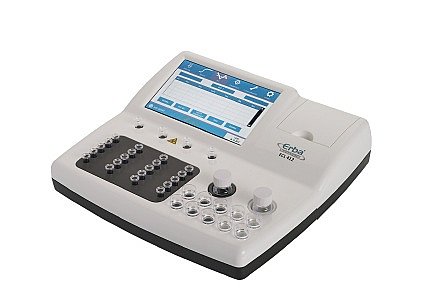

ECL 412
Last update: 11.09.2018, 18:45:46
4 Channel semi-automated coagulometer which performs all types of haemostasis assays. It is ideal for small and medium size laboratories.
Specification
Operating principles:
- Clotting assays by light scattering at 640 nm
- Immuno-turbidimetric assays at 800 nm
- Chromogenic assays by colorimetry at 405 nm
Functional characteristics:
- 4 measuring channels
- 20 reaction cups incubation positions at 37°C +/- 0.2°C
- 12 reagent positions, 7 positions for 37°C +/- 0.2°C incubated reagents, including 1 for vial with programmable stirring
- parameters: PT, APTT, TT, Fibrinogen, Coag. Factors, D-Dimer, ATIII, Protein C, Protein S, Lupus Anticoagulans
- Automatic start with standard pipettes
- 7‘‘ Resistive colour touch-screen
- Built-in thermal printer
- RFID for security of use
- Possible connection to LIS
- Possible connection to a bar code reader or an external keyboard
- Monitoring of expirations of reagent, calibrators and controls
- Quality Control program with automatic Levey Jennings graph monitors system performance
- Comprehensive Erba Haemostasis reagent line
Technical parameters:
- Universal power supply 100-250V~47-63Hz
- dimensions: 300 x 290 x 90 mm
- weight: 3 kg
- 3 USB ports (2 x type A, 1 x type B)
