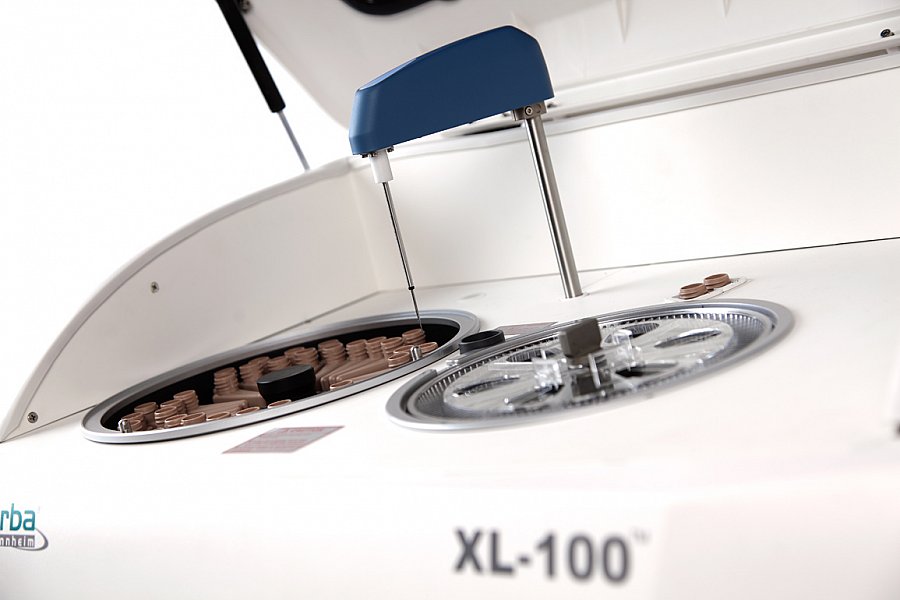

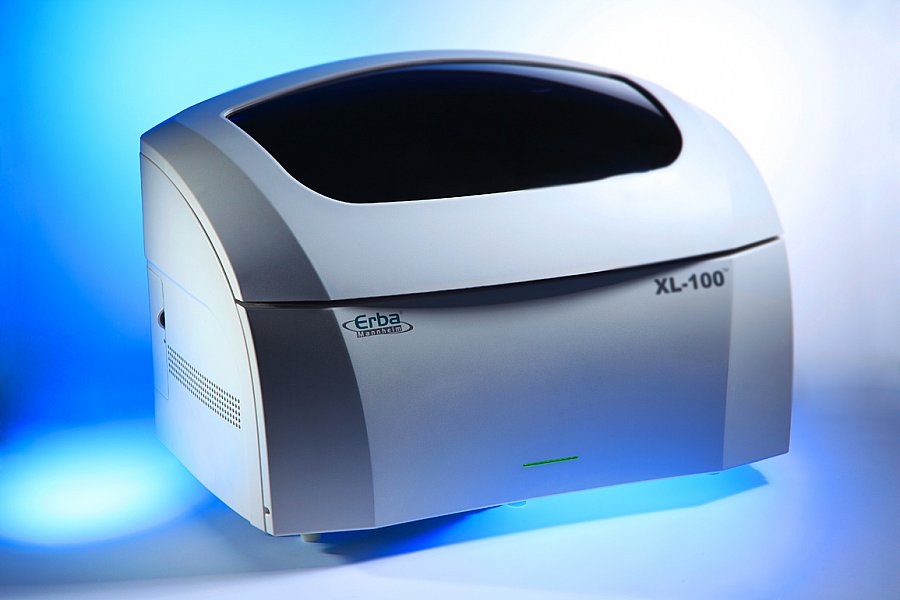

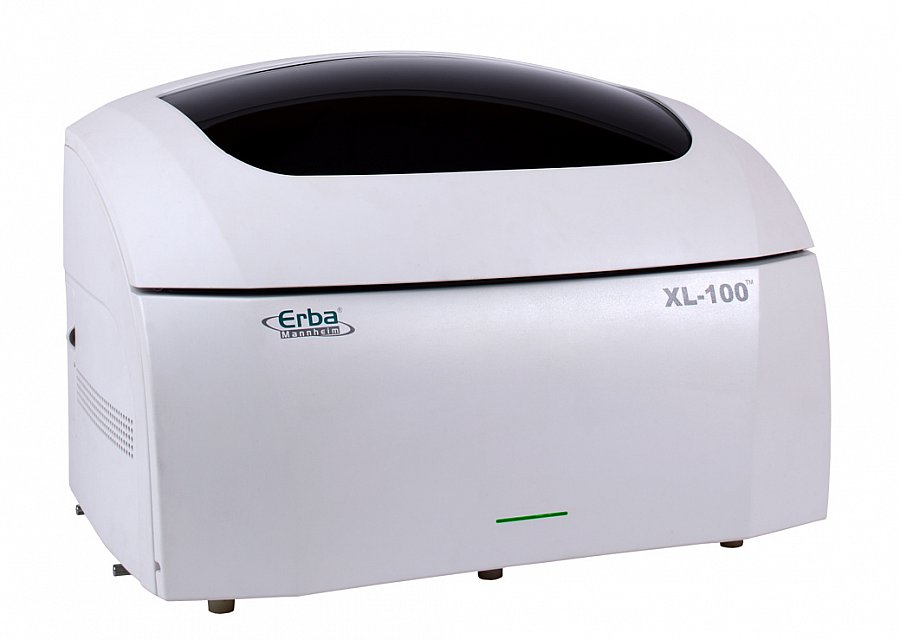

Biochemical analyzer XL 100 - Available soon!
Last update: 10.11.2017, 18:55:19
- Compact bench top model
- Wide test Menu
- Requires only 180 μl of Reagent
- Auto Dilution Auto Rerun
- Extensive Q.C Program Levy-Jenning curve and QC rules
- On board cooling
- Optional Bar Code Reader for sample and reagent
- Preheated sample / Reagent probe
System type: Discrete, Automated, Random Access, Patient prioritized, Mono or Bi-Reagent, Bench top system
Throughput: 100 tests/hour (Photometric) & 250 tests/hour (with ISE)
Throughput: 100 tests/hour (Photometric) & 250 tests/hour (with ISE)
Assay modes: 1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry
Onboard tests: 42 test items maximum + 4 ISE (optional Na , K ,Ci, Li ), 25 positions fixed for Reagents, 15 flexible (Reagent/Sample) 2 Rgt/Dil positions at Room Temperature
Programmable parameters: Unlimited test parameters, calculation items & Profiles
Sample container: Primary tube 7 ml (14.5 x 84 mm) or 5 ml (13 x 75 mm), Cup: Standard cup 2 ml
Sample volume: 2-70 μl (adjustable in 0.1 μl step)
Reaction volume: 180 μl
Reagent: 10-300 μl ( Adjustable in 1 μl step), Optional Bar-code
Photometric system: Multi-wavelength static photometer
Wavelengths: 8 wavelengths ( 340, 405, 505, 546, 578, 600, 660 & 700 nm)
Mixers: Mixing by Probe 3 Levels Slow/Medium/High
Safety mechanism: Vertical Obstruction Detection & Froth Detection, Capacitance based liquid level sensing
QC menu: Q.C Program Levy-Jenning curve and QC rules
Sample placement: Flexi Sample-Reagent Tray, Max No of Samples: 25 Nos, Fixed Sample Position: 10 Nos, Flexible Sample/Reagent position: 15 Nos.
Water consumption: 1.8 liters/hour
STAT samples: Flexi 25 positions
Reaction unit Reaction tray: Semi disposable with 120 positions
Dimensions: 675 (W) x 450 (D) x 300 (H) mm
Weight: 65 kg
Power supply: AC 220 V + 10%, 50/60 Hz or AC 110 V + 10% 50/60 Hz. (600 VA including PC & Printer)
Test Menu
| Substrates | Electrolytes | Lipids | Enzymes | Immunoturbidimetry | Others | ISE |
|---|---|---|---|---|---|---|
| Albumin | Calcium | Cholesterol | Alkaline Phosphatase | IgG / IgA / IgM | Microprotein | Sodium |
| Bilirubin- Direct | Chloride | HDL Direct | Amylase | Apo A1 / Apo B | Controls | Potassium |
| Bilirubin- Total | Magnesium | LDL Direct | CK / CK-MB | C3 / C4 | Calibrators | Chloride |
| Creatinine | Phosphorous | Triglycerides | GGT | ASO / CRP / RF | Standards | Lithium |
| Glucose | SGOT (AST) | Micro Albumin | ||||
| Total Protein | SGPT (ALT) | Lipoprotein (a) | ||||
| Urea / Uric Acid | LDH-P | Ferritin |
